40G OEO converter (3R Repeater)

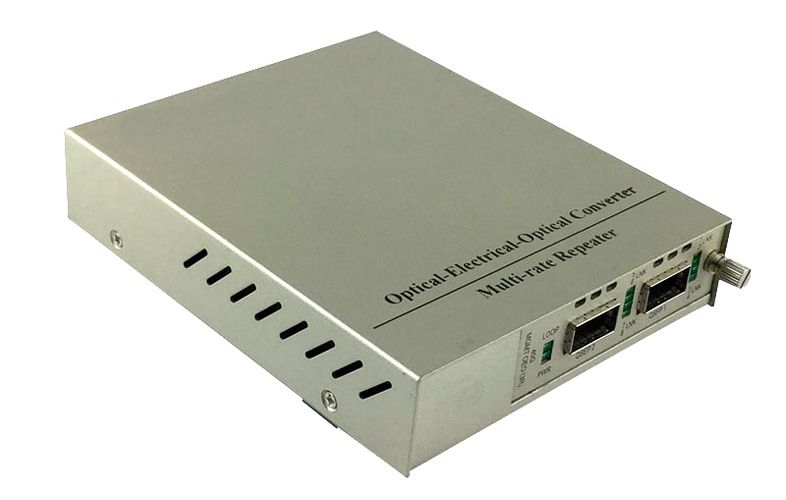

40G OEO Converter (3R Repeater) QSFP+ to QSFP+

40G OEO Converter (3R Repeater) QSFP+ to QSFP+ 40G OEO Converter (3R Repeater) QSFP+ to QSFP+ 40G OEO Converter (3R Repeater) QSFP+ to QSFP+

MAIN Applications

High-performance 40G optical signals Repeaters, using Optical - Electrical - Optical wavelength conversion. Realize the optical signal equilibrium amplification, clock extraction and optical regeneration, and with CWDM technology. Can achieve optical signals transmit in a single fiber by single or multiple way over a long distance.

KEY Feature

  • supporting QSFP to QSFP
  • Supporting 1*40G Mode and 4*10G Mode
  • Supporting Loopback test, precisely locating the failure, convenient for link test
  • 3R function, stable data transmission
  • Short delay time when transparent transmission
  • Supporting Jumbo frame
  • Supporting DMI(Diagnostic Monitoring Interface) function of optical transceivers
  • With powerful network management function, supporting WEB and SNMP
  • Supporting hot plug
  • Easy installation with complete LED indicators for working situation
  • Supporting 2U chassis (16 slots) and standalone chassis. Standalone chassis with internal special communication power supply, chassis support dual redundant power supply(support OLP function)

Technical Information

Performance Data Technical Indexes
Equipment function 3R Repeater
Transmission Speed 40G
Interface Type
  • QSFP+ to QSFP+
Transmission Distance depends on the modules used
power requirement Rack-mountable : AC 85 ~ 220V OR DC -48V
Standalone: AC 110~220V OR -48V
Power consumption: ≤8W
Work Environment Operating Temp: 0~ 50 ℃
Storage Temp: -10~ 70 ℃
Humidity: 5%~90% ( non-condensing )
 Dimension  Card : 112.8mm (W) × 77.2 mm (D) × 23 mm (H)
