Professional Industrial RJ45 Cat.6a (Cat.5, Cat.7) Connector for UTP, STP, FTP, SFTP Twisted Pair
(Fast connector, tool-free connector)
Description:
Professional industrial RJ45 connector for twisted-pair cabling at speeds up to 10G. A proven, reliable solution for data centers, industrial facilities, and large offices. It allows a Cat.6a 10G patch cord to be terminated quickly using an IDC contact group without special tools.

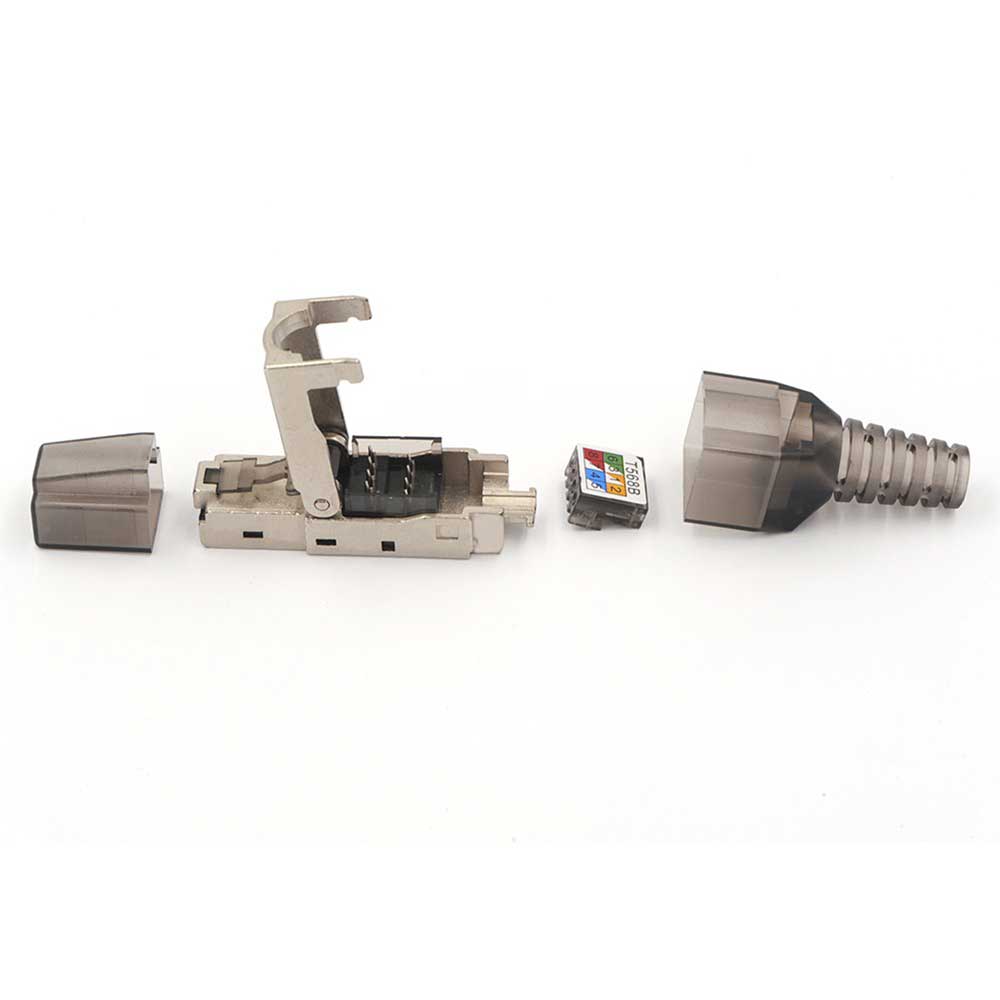

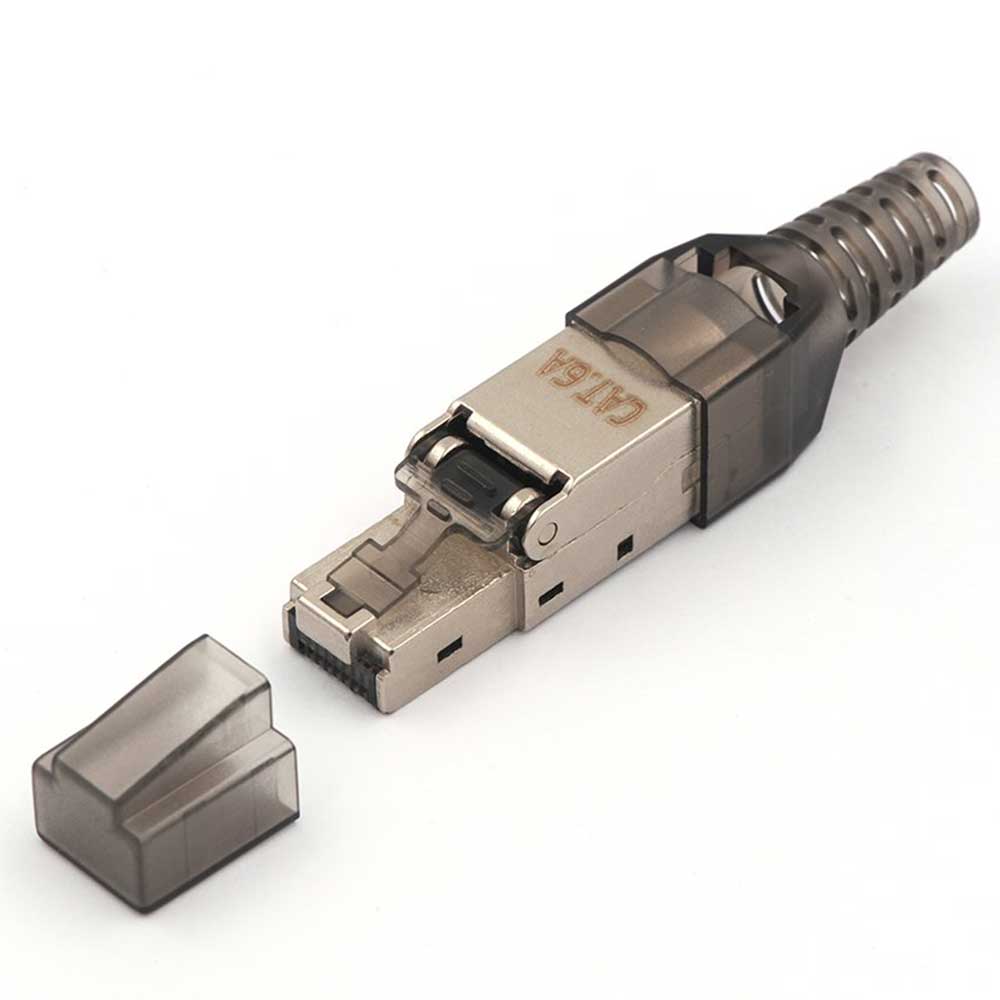

Industrial RJ45 UTP and STP Cat.6A Plug
Product Information:
- CAT6A Class Ea RJ45 connector for field installation
- UTP and FTP: one design
- Easy assembly — terminates in about 2 minutes without special tools
- Wire termination: stranded wire AWG 27/7 to 22/7, wire diameter 0.46 to 0.76 mm
- Wire termination: solid wire AWG 26/1 to 22/1, wire diameter 0.46 to 0.76 mm
- Transmission performance: CAT6A according to ISO / IEC 11801 Ed.2.2: 2011-06
- Class Ea compliance: ISO / IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09, 10 Gb/s; suitable for IEEE 802.3an
- Suitable for Power over Ethernet (PoE, PoE Plus and UPoE)
- Cable jacket diameter: 6 to 9.5 mm
- Adjustable strain relief (cable outer diameter 6 to 9.5 mm)
- Wiring guide for faster and easier termination
- Re-terminable
Features:
- Operating temperature: -40℃ to 60℃; relative humidity: 85% (30℃); air pressure: 70–106 kPa.
- Gold-plated phosphor bronze contacts: phosphor bronze with 3–50 microinch gold plating; mating durability of at least 750 cycles.
- Anti-snag design: product made from Kirsite / PC or PCB (UL94V-0), compliant with international standards
- Contact resistance: no more than 20 mΩ at normal atmospheric pressure (excluding bulk resistance)
- Insulation resistance: at least 1000 MΩ at normal atmospheric pressure
- Dielectric withstand: 1000 V DC (700 V AC), with no breakdown or flashover for one minute
- Retention force: 7.7 kg between jack and plug
- Label: clear marking area for convenient identification and management.
