40G/10G/1G QSFP => SFP+ Interface Converter

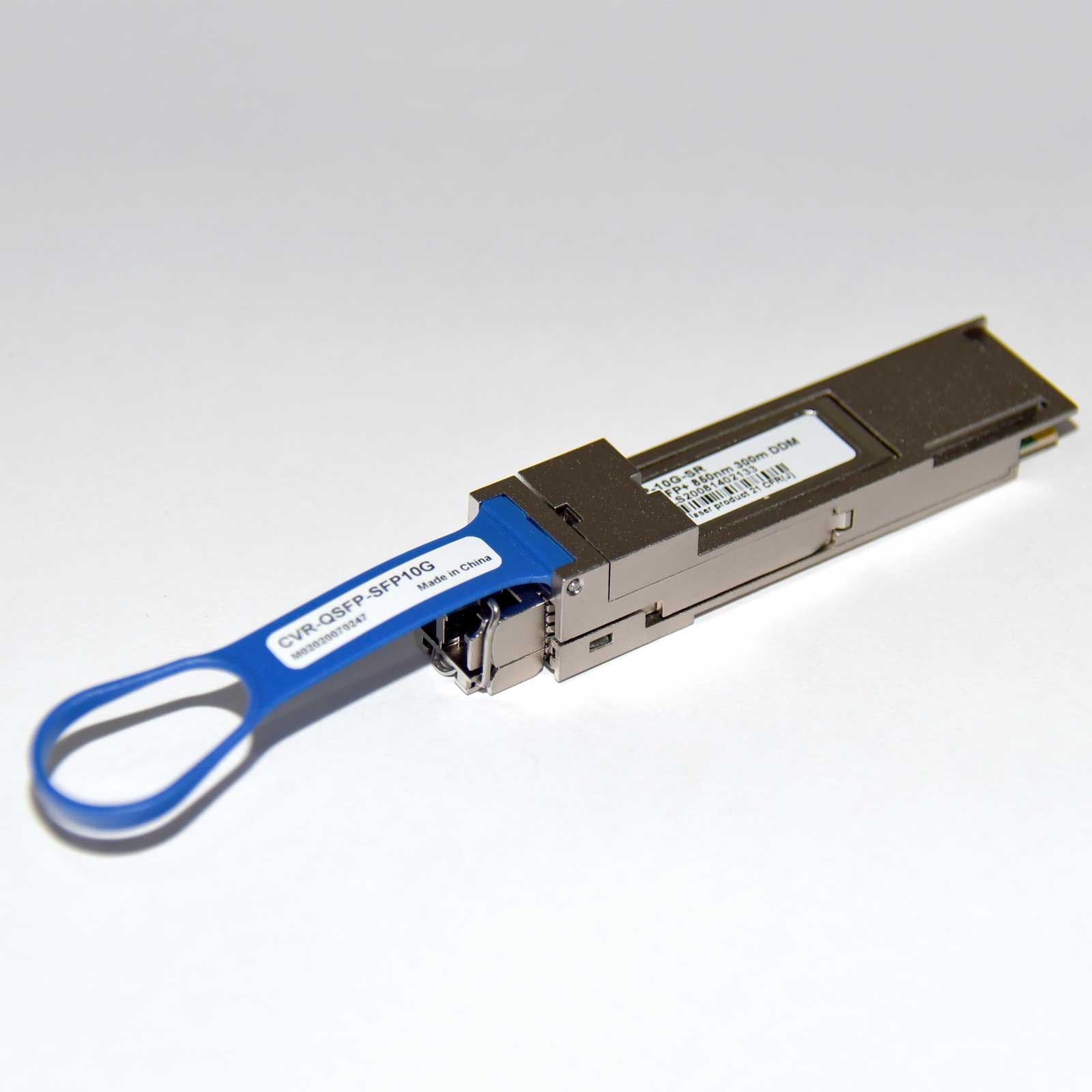

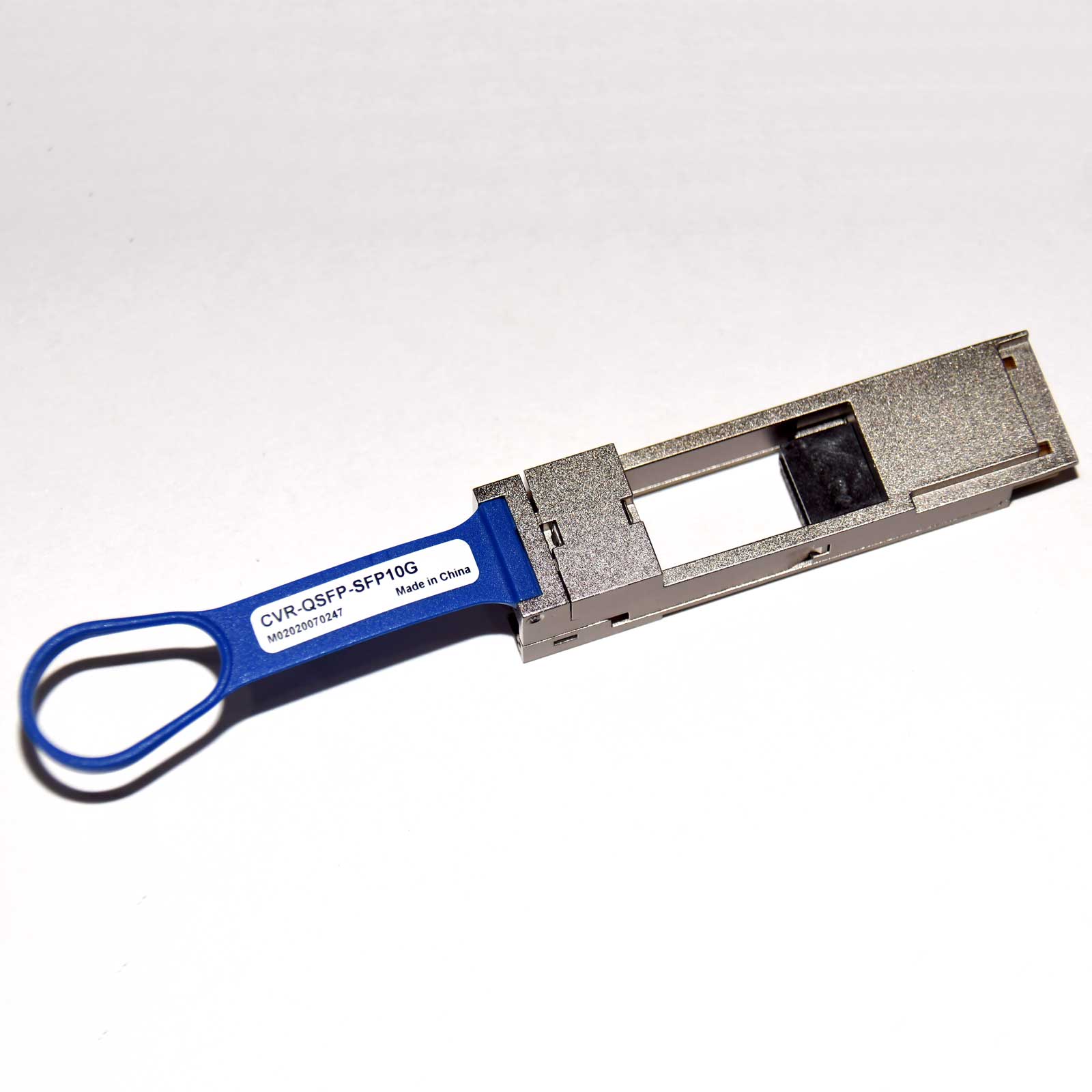

CVR-QSFP-SFP10G Adapter / Converter
CVR-QSFP-SFP10G is a QSFP adapter for 1G SFP or 10G SFP+ modules. It provides 10 Gigabit Ethernet and 1 Gigabit Ethernet connectivity on platforms equipped only with 40G QSFP ports. It enables a smooth, cost-effective transition to 40 Gigabit Ethernet by allowing lower-speed 1G SFP or 10G SFP+ modules to be used in available 40G QSFP ports or when the far end of the network operates at a lower speed.
Supported Devices
The QSA module converts a QSFP port into an SFP or SFP+ port. With this adapter, any SFP+ or SFP module or cable can be used to connect to a lower-speed port at the far end of the network. The adapter supports SFP+ optics and cables as well as Gigabit Ethernet SFP modules.
Any 10G SFP+ module can be used: SFP+ Copper, SFP+ Duplex, SFP+ BiDi (WDM), SFP+ CWDM, SFP+ DWDM.
10G DAC and 40G-to-4x10G DAC cables can be used.
QSFP => SFP+ Converter Adapter
| Model QSFP => SFP+ converter | Data rate | Distance | Wavelength | Connector |
|
QSFP => SFP+ CVR-QSFP-SFP10G |
40 Gb/s 10 Gb/s 1 Gb/s |
according to SFP/SFP+ used | according to SFP/SFP+ used | SFP/SFP+ slot (port) |
Summary:
- flexibility: use multiple interfaces — 40G QSFP, 10G SFP+, and 1G SFP;
- cost savings: smooth transition to 40G.
