MPO / MTP trunk cable, patch cord


MPO and MTP Trunk cable assembly, patch-cord. MPO/MTP Polarity: A, B, C and Fan-out cable.

MPO MTP Trunk Cable MPO MTP Trunk Cable MPO MTP Trunk Cable MPO MTP Trunk Cable MPO MTP Trunk Cable MPO MTP Trunk Cable MPO MTP Trunk Cable

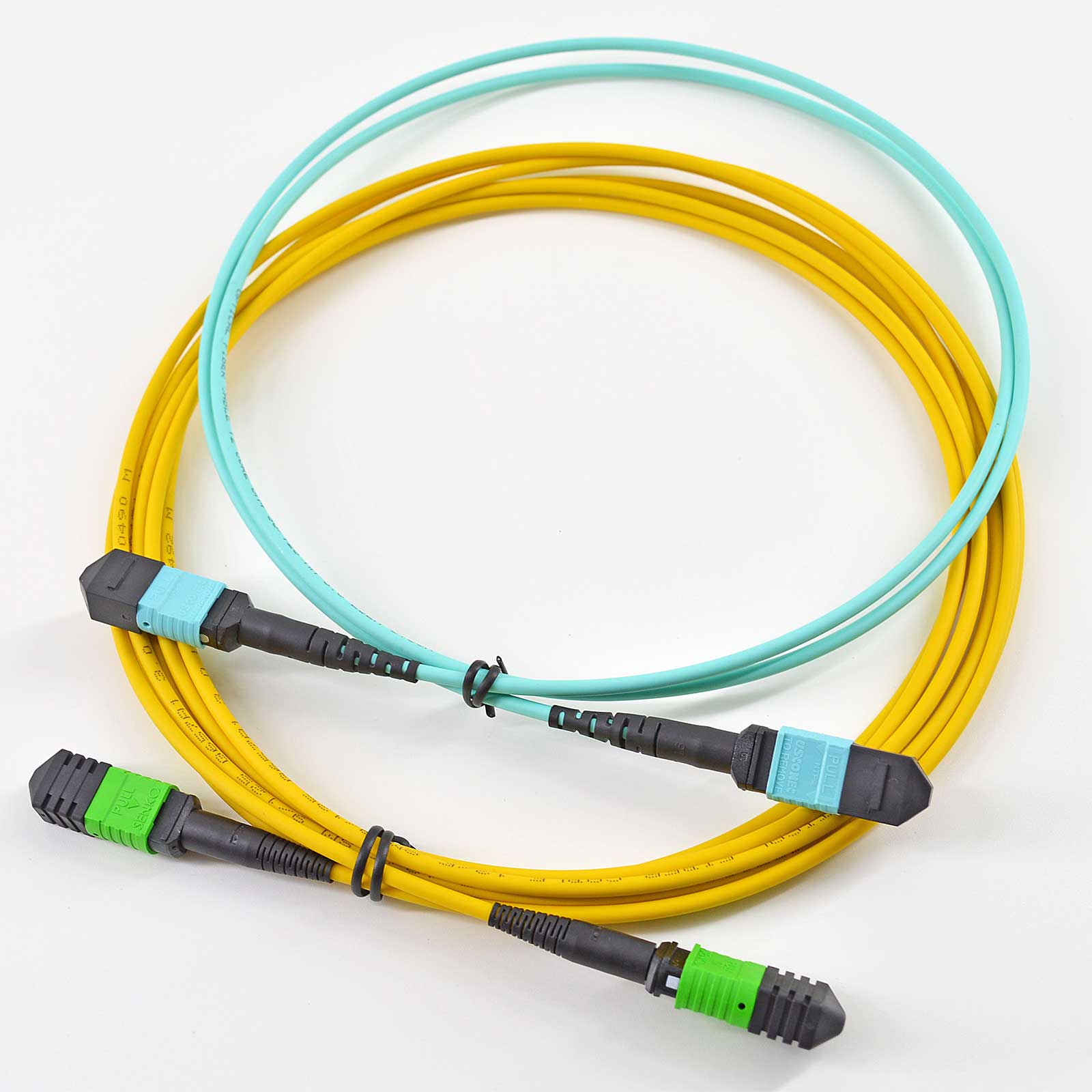

The MPO multi-fiber trunk cable assembly is designed for reliable and fast operation in data centers. The clear advantages of these cables are less space requirements and improved scalability, which provides significant savings in space and resources. MTP / MPO cables are commonly used for 40GbE and 100GbE network environments.

  • MPO / MTP polarity A: Straight cable - Key up / key down.
  • MPO / MTP polarity B: Cross cable - key up / key up. (For connecting 40G QSFP, 100G QSFP28, CFP transceivers).
  • MPO / MTP polarity C: Trunk cable (Cross pair) - key up / key down.

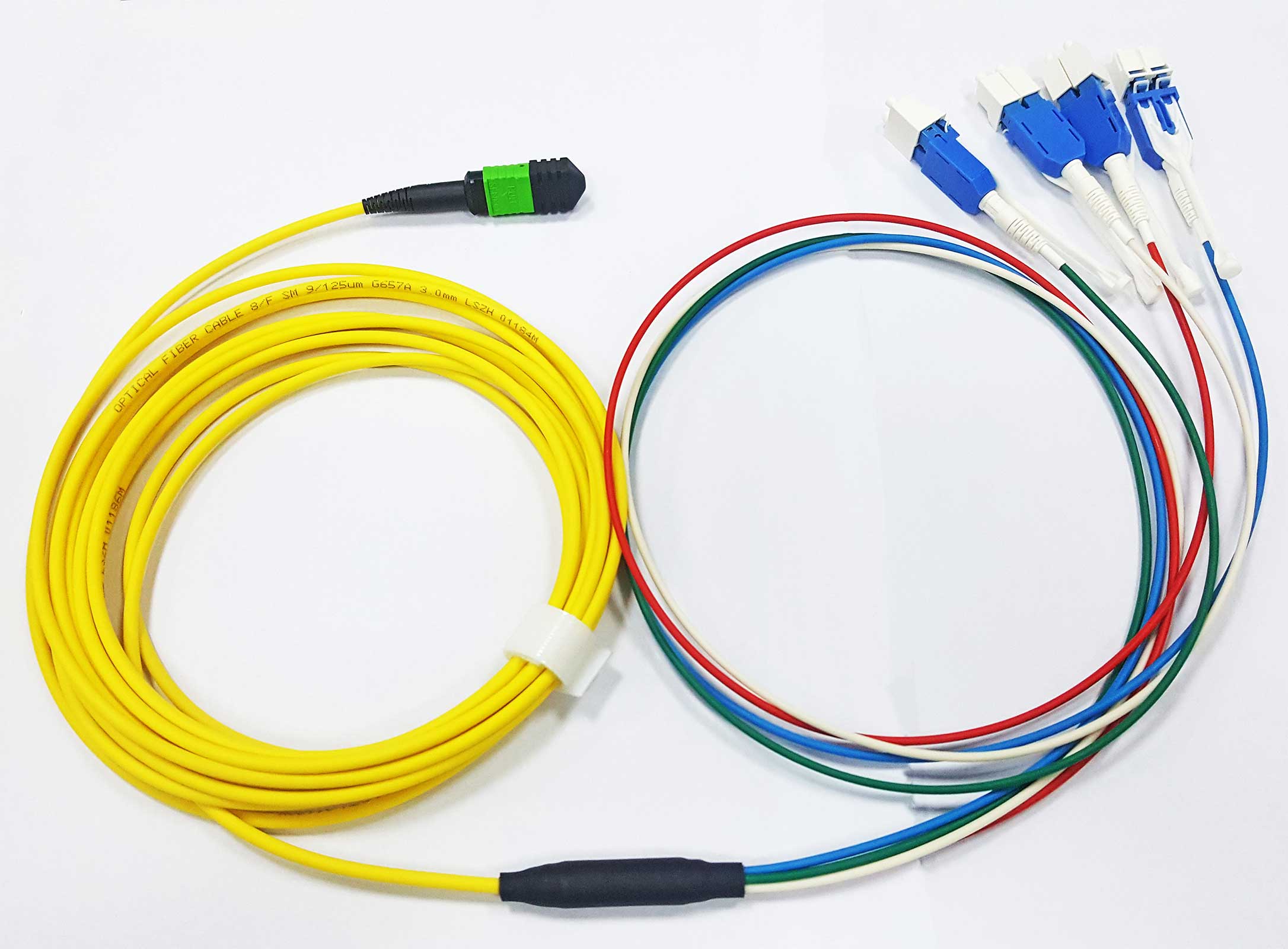

  • MPO / MTP Fan-out cable with connectors LC, SC, ...

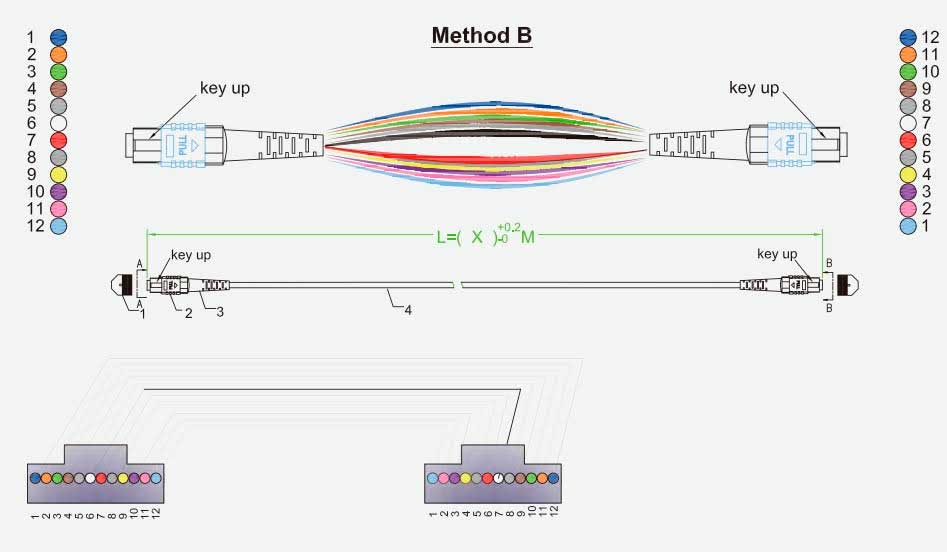

mpo chema type b

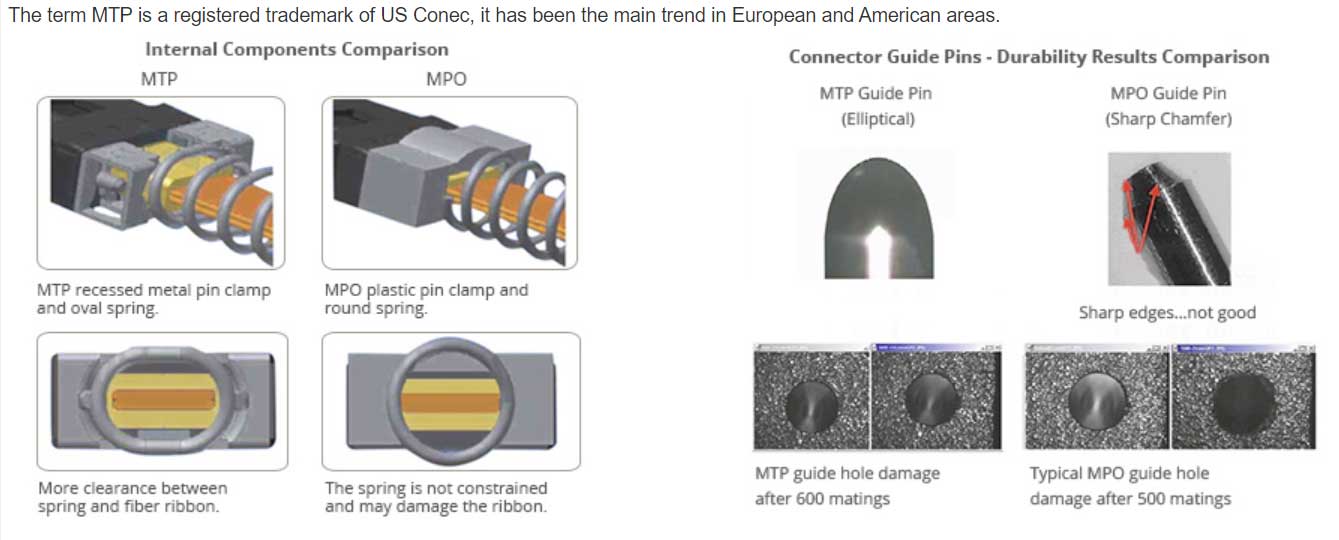

MTP vs MPO Difference
 mpo mtp difference


MPO Trunk Patch Cables for transceivers 40G, 100G

Cable Fibers length

MPO-MPO Multimode

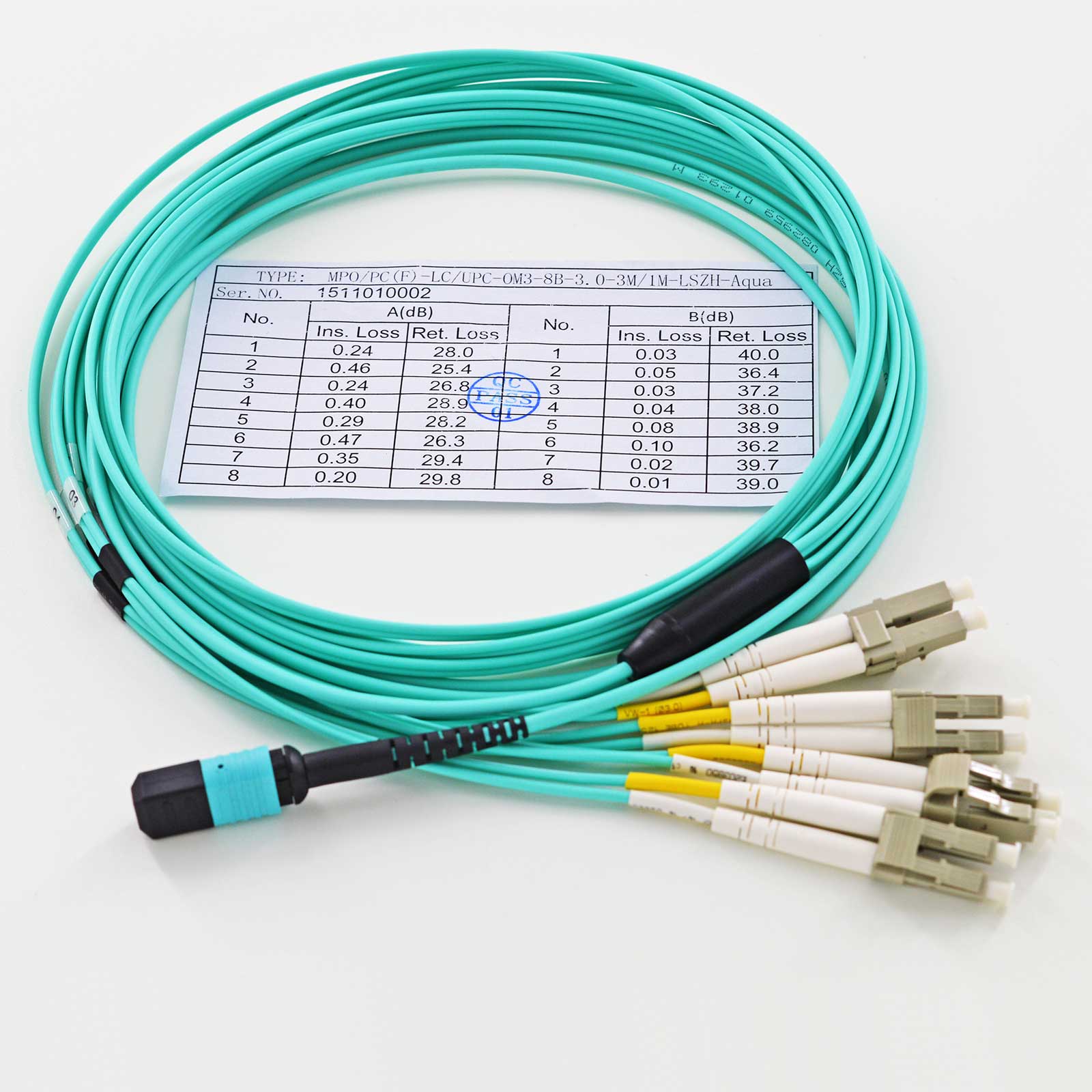

8F MPO/PC(F)-4*Duplex LC/PC-OM3-3.0 Polarity B
(for connection 40G QSFP+ SR4 with modules 10G SFP+ SR)
MMF OM3 8 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-OM3-8Fiber-3.0MM- LSZH-1m Polarity B MMF OM3 8 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-OM3-12Fiber-3.0MM- LSZH-1m Polarity B MMF OM3 12 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-OM3-24Fiber-3.0MM- LSZH-1m Polarity B MMF OM3 24 1m, 3m, 5m, 10m, custom

8F MPO/PC(F)-4*Duplex LC/PC-OM3-3.0 Polarity B
(for connection 40G QSFP+ SR4 with modules 10G SFP+ SR)
MMF OM4 8 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-OM4-8Fiber-3.0MM- LSZH-1m Polarity B  MMF OM4 8 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-OM4-12Fiber-3.0MM- LSZH-1m Polarity B  MMF OM4 12 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-OM4-24Fiber-3.0MM- LSZH-1m Polarity B  MMF OM4 24 1m, 3m, 5m, 10m, custom

MPO-MPO Singlemode
8F MPO/PC(F)-4*Duplex LC/PC-OM3-3.0 Polarity B
(for connection 40G QSFP+ SR4 with modules 10G SFP+ LR)
SMF 8 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-SMF-8Fiber-3.0MM- LSZH-1m Polarity B SMF 8 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-SMF-8Fiber-3.0MM- LSZH-1m Polarity B SMF 12 1m, 3m, 5m, 10m, custom
MPO/F-MPO/F-SMF-8Fiber-3.0MM- LSZH-1m Polarity B SMF 24 1m, 3m, 5m, 10m, custom


MPO Trunk Fiber Patch Cables are terminated with MPO connector on both end.

1. Number of optical fibers: 8, 12, 24, 36, 48, 72, 96, 144
2. The default diameter of the MPO cable is 3.0mm.
3. The diameter of branch cable could be choose as 0.9mm,2.0mm,please kindly contact us for other diameter standard.
