High-quality XFP modules, transceivers reprogrammable. Duplex, BiDi (WDM), CWDM, DWDM. SR, LR, ER, ZR. 300 m ... 120 km. Buy USA, Europe.

XFP modules transceivers

: Transceivers

XFP Duplex, XFP WDM (BiDi), XFP CWDM, XFP DWDM

Programmer board for transceivers SFP, SFP+, XFP, QSFP

The modern type of optical transceiver XFP standard 10GBASE (10Gb/s). Currently, transceivers XFP 10G WDM (BiDi, bi-directional) are more often used.

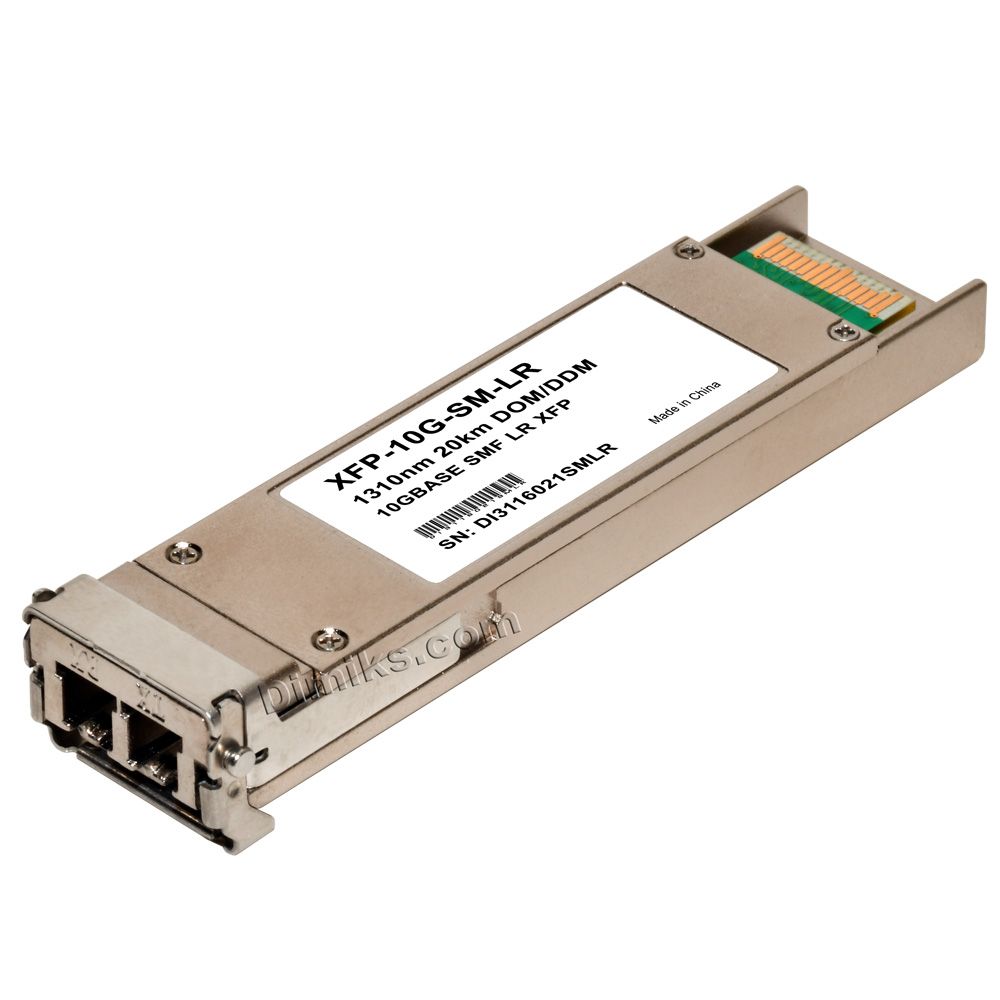

XFP Duplex (modules reprogrammable)

XFP Duplex (modules reprogrammable)

Model XFP transceiver module	Data rate	Distance	Wavelength	Connector
XFP Duplex 300m	10.3 Gb/s	300 m (984 ft)	850 nm	LC
XFP Duplex 10km	10.3 Gb/s	10 km (6.2 mi)	1310 nm	LC
XFP Duplex 20km	10.3 Gb/s	20 km (12.4 mi)	1310 nm	LC
XFP Duplex 40km	10.3 Gb/s	40 km (24.9 mi)	1310 nm	LC
XFP Duplex 80km	10.3 Gb/s	80 km (49.7 mi)	1550 nm	LC
XFP Duplex 120km	10.3 Gb/s	120 km (74.6 mi)	1550 nm	LC

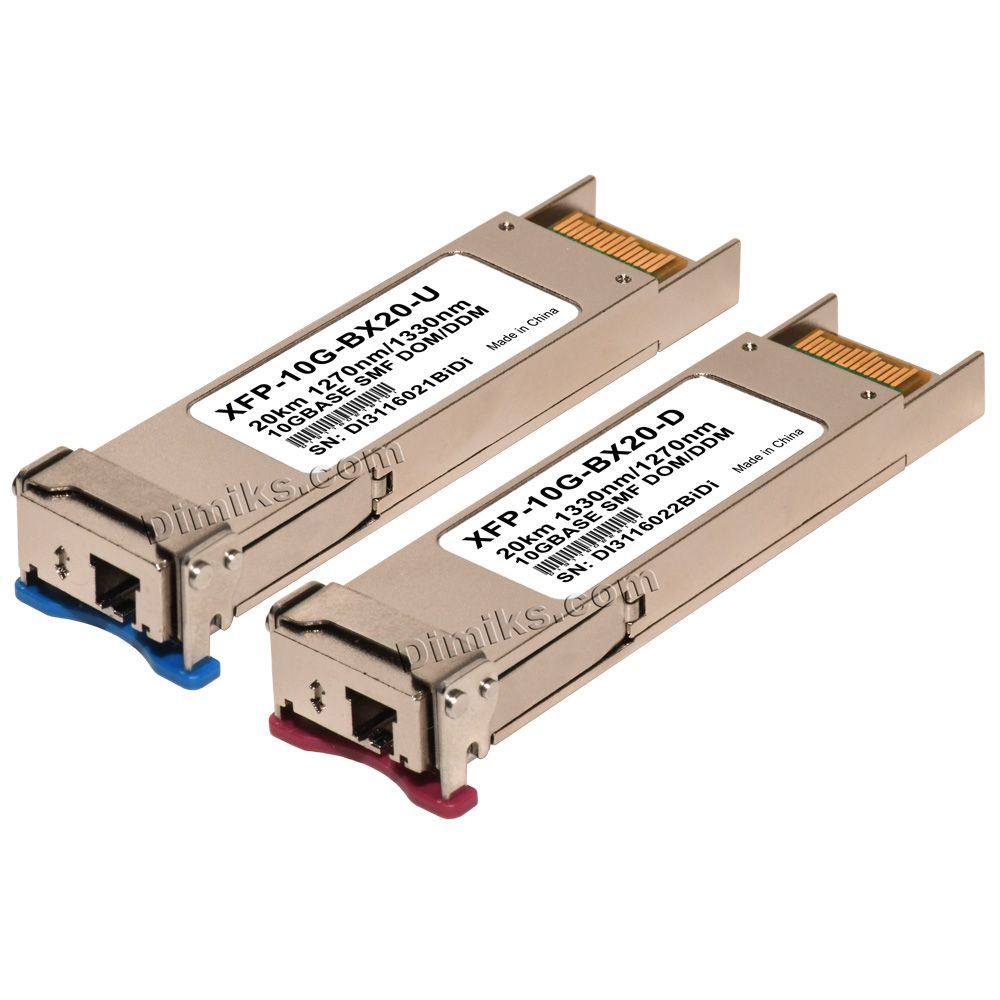

XFP WDM (BiDi) (modules reprogrammable)

XFP WDM (BiDi) (modules reprogrammable)

Model XFP transceiver module	Data rate	Distance	Wavelength	Connector
XFP WDM (BiDi) 10km	10.3 Gb/s	10 km (6.2 mi)	1270nm/1330nm	LC
XFP WDM (BiDi) 20km	10.3 Gb/s	20 km (12.4 mi)	1270nm/1330nm	LC
XFP WDM (BiDi) 40km	10.3 Gb/s	40 km (24.9 mi)	1270nm/1330nm	LC
XFP WDM (BiDi) 60km	10.3 Gb/s	60 km (37.3 mi)	1270nm/1330nm	LC
XFP WDM (BiDi) 80km	10.3 Gb/s	80 km (49.7 mi)	1490nm/1550nm	LC
XFP WDM (BiDi) 100km	10.3 Gb/s	100 km (62.1 mi)	1530nm/1550nm	LC

XFP CWDM (modules reprogrammable)

XFP CWDM (modules reprogrammable)

Model XFP transceiver module	Data rate	Distance	Wavelength	Channel
XFP CWDM 1270 nm	10.3 Gb/s	20km, 40km	1270nm	27
XFP CWDM 1290 nm	10.3 Gb/s	20km, 40km	1290nm	29
XFP CWDM 1310 nm	10.3 Gb/s	20km, 40km	1310nm	31
XFP CWDM 1330 nm	10.3 Gb/s	20km, 40km	1330nm	33
XFP CWDM 1350 nm	10.3 Gb/s	20km, 40km	1350nm	35
XFP CWDM 1370 nm	10.3 Gb/s	20km, 40km	1370nm	37
XFP CWDM 1390 nm	10.3 Gb/s	20km, 40km	1390nm	39
XFP CWDM 1410 nm	10.3 Gb/s	20km, 40km	1410nm	41
XFP CWDM 1430 nm	10.3 Gb/s	20km, 40km	1430nm	43
XFP CWDM 1450 nm	10.3 Gb/s	20km, 40km	1450nm	45
XFP CWDM 1470 nm	10.3 Gb/s	20km, 40km, 80km	1470nm	47
XFP CWDM 1490 nm	10.3 Gb/s	20km, 40km, 80km	1490nm	49
XFP CWDM 1510 nm	10.3 Gb/s	20km, 40km, 80km	1510nm	51
XFP CWDM 1530 nm	10.3 Gb/s	20km, 40km, 80km	1530nm	53
XFP CWDM 1550 nm	10.3 Gb/s	20km, 40km, 80km	1550nm	55
XFP CWDM 1570 nm	10.3 Gb/s	20km, 40km, 80km	1570nm	57
XFP CWDM 1590 nm	10.3 Gb/s	20km, 40km, 80km	1590nm	59
XFP CWDM 1610 nm	10.3 Gb/s	20km, 40km, 80km	1610nm	61

* - Wideband Receiver

XFP DWDM [C-Band] (modules reprogrammable)

XFP DWDM [C-Band] (modules reprogrammable)

Model XFP transceiver (C-Band)	Data rate	Distance	Channel	Frequency, THz	Wavelength, nm
XFP DWDM C17	10.3 Gb/s	80km, 120km	C17	191.7	1563.86
XFP DWDM C18	10.3 Gb/s	80km, 120km	C18	191.7	1563.05
XFP DWDM C19	10.3 Gb/s	80km, 120km	C19	191.9	1562.23
XFP DWDM C20	10.3 Gb/s	80km, 120km	C20	192.0	1561.42
XFP DWDM C21	10.3 Gb/s	80km, 120km	C21	192.1	1560.61
XFP DWDM C22	10.3 Gb/s	80km, 120km	C22	192.2	1559.79
XFP DWDM C23	10.3 Gb/s	80km, 120km	C23	192.3	1558.98
XFP DWDM C24	10.3 Gb/s	80km, 120km	C24	192.4	1558.17
XFP DWDM C25	10.3 Gb/s	80km, 120km	C25	192.5	1557.36
XFP DWDM C26	10.3 Gb/s	80km, 120km	C26	192.6	1556.55
XFP DWDM C27	10.3 Gb/s	80km, 120km	C27	192.7	1555.75
XFP DWDM C28	10.3 Gb/s	80km, 120km	C28	192.8	1554.94
XFP DWDM C29	10.3 Gb/s	80km, 120km	C29	192.9	1554.13
XFP DWDM C30	10.3 Gb/s	80km, 120km	C30	193.0	1553.33
XFP DWDM C31	10.3 Gb/s	80km, 120km	C31	193.1	1552.52
XFP DWDM C32	10.3 Gb/s	80km, 120km	C32	193.2	1551.72
XFP DWDM C33	10.3 Gb/s	80km, 120km	C33	193.3	1550.92
XFP DWDM C34	10.3 Gb/s	80km, 120km	C34	193.4	1550.12
XFP DWDM C35	10.3 Gb/s	80km, 120km	C35	193.5	1549.32
XFP DWDM C36	10.3 Gb/s	80km, 120km	C36	193.6	1548.51
XFP DWDM C37	10.3 Gb/s	80km, 120km	C37	193.7	1547.72
XFP DWDM C38	10.3 Gb/s	80km, 120km	C38	193.8	1546.92
XFP DWDM C39	10.3 Gb/s	80km, 120km	C39	193.9	1546.12
XFP DWDM C40	10.3 Gb/s	80km, 120km	C40	194.0	1545.32
XFP DWDM C41	10.3 Gb/s	80km, 120km	C41	194.1	1544.53
XFP DWDM C42	10.3 Gb/s	80km, 120km	C42	194.2	1543.73
XFP DWDM C43	10.3 Gb/s	80km, 120km	C43	194.3	1542.94
XFP DWDM C44	10.3 Gb/s	80km, 120km	C44	194.4	1542.14
XFP DWDM C45	10.3 Gb/s	80km, 120km	C45	194.5	1541.35
XFP DWDM C46	10.3 Gb/s	80km, 120km	C46	194.6	1540.56
XFP DWDM C47	10.3 Gb/s	80km, 120km	C47	194.7	1539.77
XFP DWDM C48	10.3 Gb/s	80km, 120km	C48	194.8	1538.98
XFP DWDM C49	10.3 Gb/s	80km, 120km	C49	194.9	1538.19
XFP DWDM C50	10.3 Gb/s	80km, 120km	C50	195.0	1537.40
XFP DWDM C51	10.3 Gb/s	80km, 120km	C51	195.1	1536.61
XFP DWDM C52	10.3 Gb/s	80km, 120km	C52	195.2	1535.82
XFP DWDM C53	10.3 Gb/s	80km, 120km	C53	195.3	1535.04
XFP DWDM C54	10.3 Gb/s	80km, 120km	C54	195.4	15.34.25
XFP DWDM C55	10.3 Gb/s	80km, 120km	C55	195.5	1533.47
XFP DWDM C56	10.3 Gb/s	80km, 120km	C56	195.6	1532.68
XFP DWDM C57	10.3 Gb/s	80km, 120km	C57	195.7	1531.90
XFP DWDM C58	10.3 Gb/s	80km, 120km	C58	195.8	1531.12
XFP DWDM C59	10.3 Gb/s	80km, 120km	C59	195.9	1530.33
XFP DWDM C60	10.3 Gb/s	80km, 120km	C60	196.0	1529.55
XFP DWDM C61	10.3 Gb/s	80km, 120km	C61	196.1	1528.77

* - Wideband Receiver

XFP DWDM [L-Band] (modules reprogrammable)

XFP DWDM [L-Band] (modules reprogrammable)

Model XFP transceiver (L-Band)	Data rate	Distance	Channel	Frequency, THz	Wavelength, nm
XFP DWDM L62	10.3 Gb/s	80km, 120km	L62	186.2	1610.06
XFP DWDM L63	10.3 Gb/s	80km, 120km	L63	186.3	1609.19
XFP DWDM L64	10.3 Gb/s	80km, 120km	L64	186.4	1608.33
XFP DWDM L65	10.3 Gb/s	80km, 120km	L65	186.5	1607.47
XFP DWDM L66	10.3 Gb/s	80km, 120km	L66	186.6	1606.61
XFP DWDM L67	10.3 Gb/s	80km, 120km	L67	186.7	1605.74
XFP DWDM L68	10.3 Gb/s	80km, 120km	L68	186.8	1604.88
XFP DWDM L69	10.3 Gb/s	80km, 120km	L69	186.9	1604.03
XFP DWDM L70	10.3 Gb/s	80km, 120km	L70	187.0	1603.17
XFP DWDM L71	10.3 Gb/s	80km, 120km	L71	187.1	1602.31
XFP DWDM L72	10.3 Gb/s	80km, 120km	L72	187.2	1601.46
XFP DWDM L73	10.3 Gb/s	80km, 120km	L73	187.3	1600.60
XFP DWDM L74	10.3 Gb/s	80km, 120km	L74	187.4	1599.75
XFP DWDM L75	10.3 Gb/s	80km, 120km	L75	187.5	1598.89
XFP DWDM L76	10.3 Gb/s	80km, 120km	L76	187.6	1598.04
XFP DWDM L77	10.3 Gb/s	80km, 120km	L77	187.7	1597.19
XFP DWDM L78	10.3 Gb/s	80km, 120km	L78	187.8	1596.34
XFP DWDM L79	10.3 Gb/s	80km, 120km	L79	187.9	1595.49
XFP DWDM L80	10.3 Gb/s	80km, 120km	L80	188.0	1594.64
XFP DWDM L81	10.3 Gb/s	80km, 120km	L81	188.1	1593.79
XFP DWDM L82	10.3 Gb/s	80km, 120km	L82	188.2	1592.95
XFP DWDM L83	10.3 Gb/s	80km, 120km	L83	188.3	1592.10
XFP DWDM L84	10.3 Gb/s	80km, 120km	L84	188.4	1591.26
XFP DWDM L85	10.3 Gb/s	80km, 120km	L85	188.5	1590.41
XFP DWDM L86	10.3 Gb/s	80km, 120km	L86	188.6	1589.57
XFP DWDM L87	10.3 Gb/s	80km, 120km	L87	188.7	1588.73
XFP DWDM L88	10.3 Gb/s	80km, 120km	L88	188.8	1587.88
XFP DWDM L89	10.3 Gb/s	80km, 120km	L89	188.9	1587.04
XFP DWDM L90	10.3 Gb/s	80km, 120km	L90	189.0	1586.20
XFP DWDM L91	10.3 Gb/s	80km, 120km	L91	189.1	1585.36
XFP DWDM L92	10.3 Gb/s	80km, 120km	L92	189.2	1584.53
XFP DWDM L93	10.3 Gb/s	80km, 120km	L93	189.3	1583.69
XFP DWDM L94	10.3 Gb/s	80km, 120km	L94	189.4	1582.85
XFP DWDM L95	10.3 Gb/s	80km, 120km	L95	189.5	1582.02
XFP DWDM L96	10.3 Gb/s	80km, 120km	L96	189.6	1581.18
XFP DWDM L97	10.3 Gb/s	80km, 120km	L97	189.7	1580.35
XFP DWDM L98	10.3 Gb/s	80km, 120km	L98	189.8	1579.52
XFP DWDM L99	10.3 Gb/s	80km, 120km	L99	189.9	1578.69
XFP DWDM L00	10.3 Gb/s	80km, 120km	L00	190.0	1577.86
XFP DWDM L01	10.3 Gb/s	80km, 120km	L01	190.1	1577.03
XFP DWDM L02	10.3 Gb/s	80km, 120km	L02	190.2	1576.20
XFP DWDM L03	10.3 Gb/s	80km, 120km	L03	190.3	1575.37
XFP DWDM L04	10.3 Gb/s	80km, 120km	L04	190.4	1574.54
XFP DWDM L05	10.3 Gb/s	80km, 120km	L05	190.5	1573.71
XFP DWDM L06	10.3 Gb/s	80km, 120km	L06	190.6	1572.89
XFP DWDM L07	10.3 Gb/s	80km, 120km	L07	190.7	1572.06
XFP DWDM L08	10.3 Gb/s	80km, 120km	L08	190.8	1571.24
XFP DWDM L09	10.3 Gb/s	80km, 120km	L09	190.9	1570.42

* - Wideband Receiver
