Media converter mini (micro) – SFP port/slot to RJ45
Media converter mini (micro) – SFP port/slot to RJ45

1G Media converter mini: SFP port // RJ45

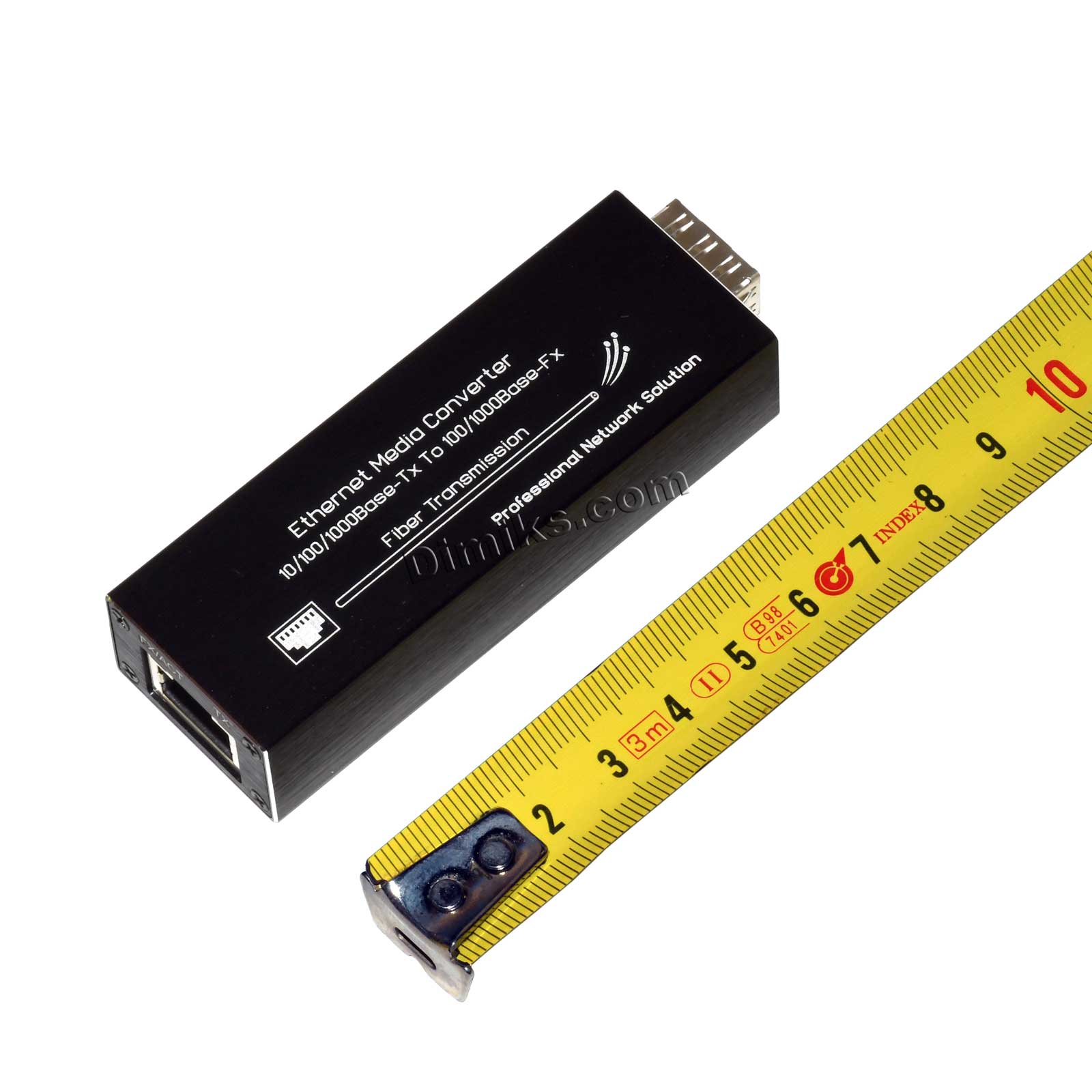

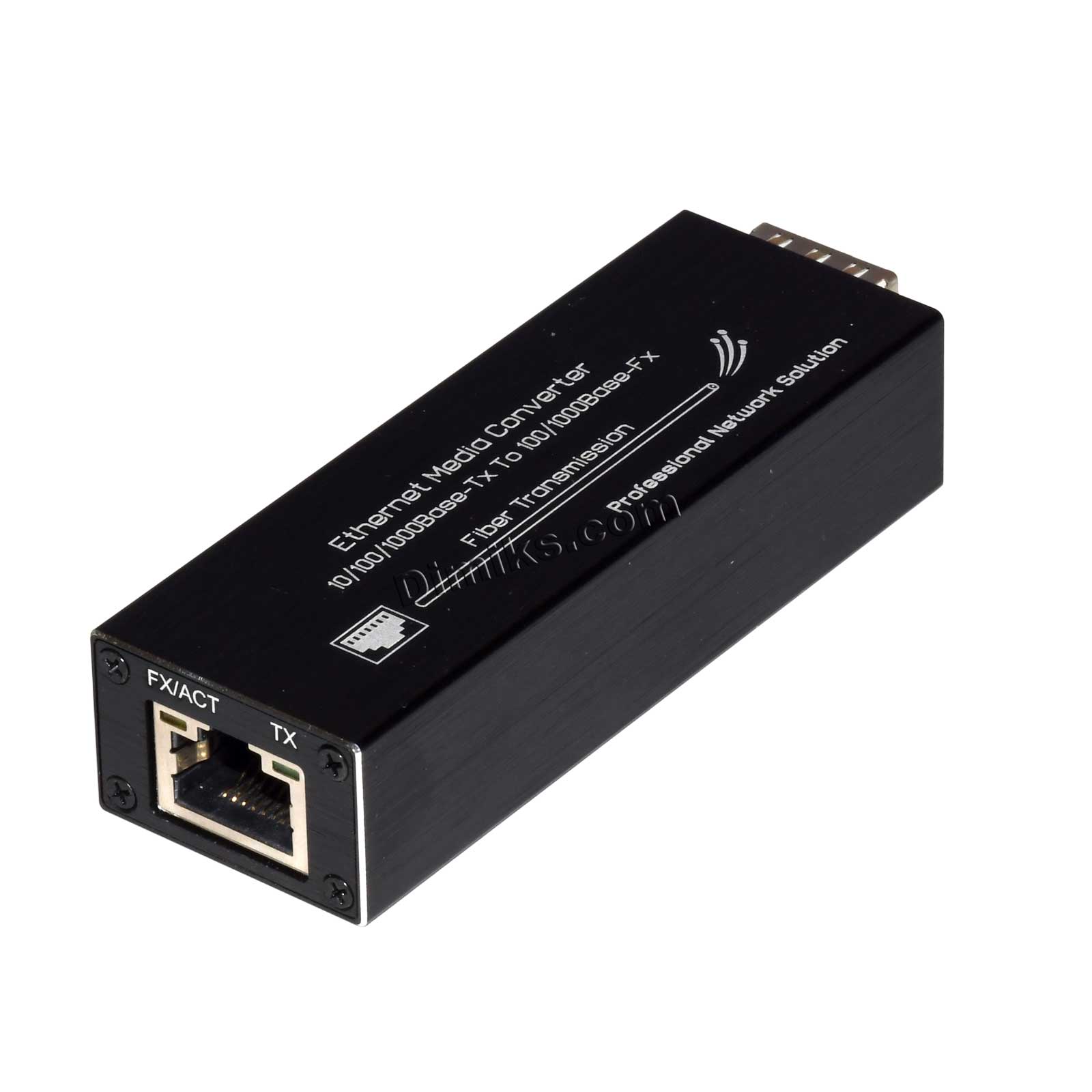

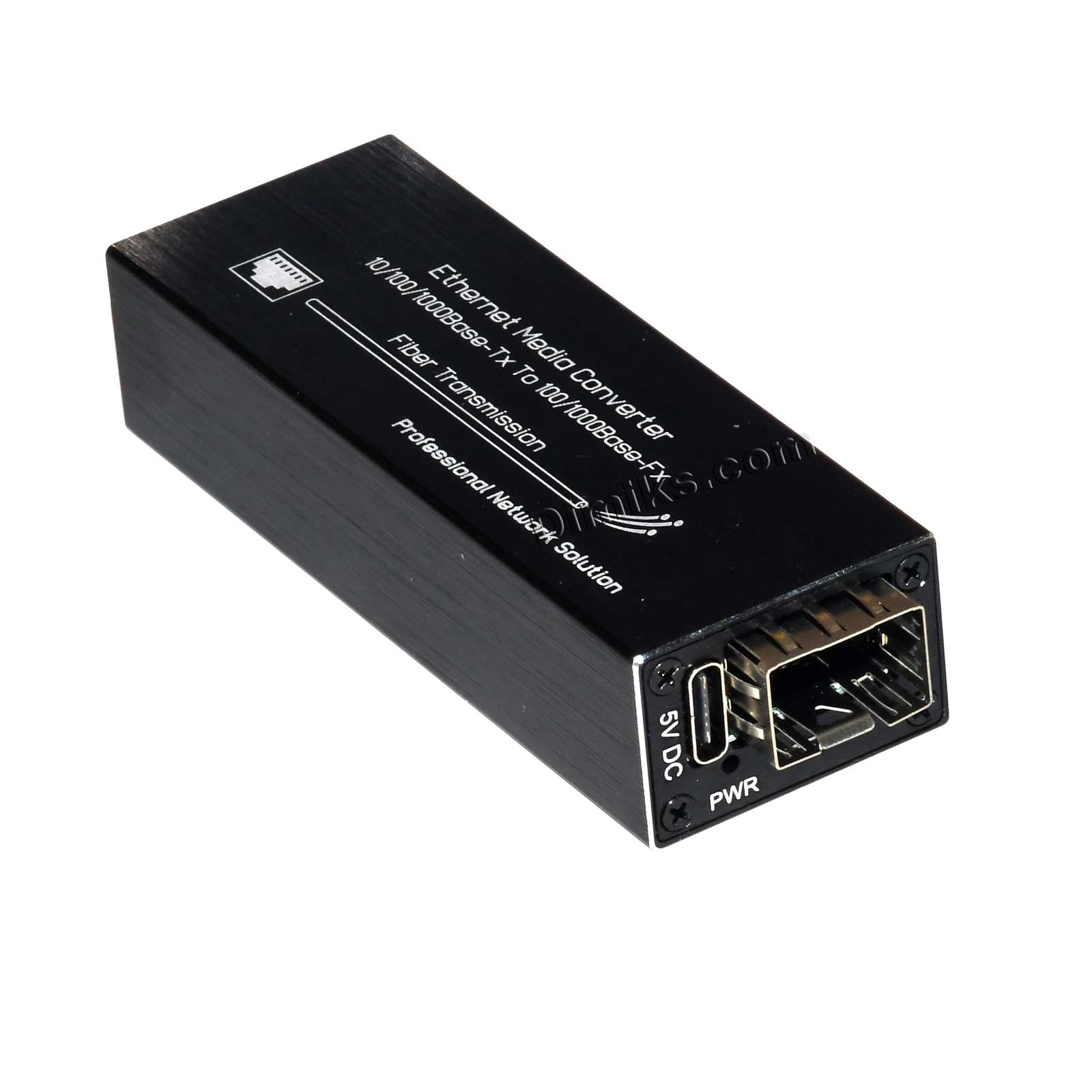

Media converter mini – 100/1000 SFP port // RJ45 10/100/1000 (DS-MC1N-G0101Micro)

 Introduction:

Datasheet:  pdf 50x50

DS-MC1N-G0101Micro 10/100/1000Mbps adaptive Gigabit Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3, IEEE802.3u, IEEE802.3z and IEEE802.3ab standards.

Presently it supports two types of media network connections: 10Base-T/100Base-TX/1000Base-T, and 100/1000Base-X, inter-converting electrical signals of 10Base-T/100Base-TX/1000Base-T twisted pairs with optical signals of 100/1000Base-SX/LX. It extends the transmission distance of network from 100m via copper cable to 120km Max via fiber optical cables. It supports transmission in multi-mode dual fiber, single mode dual fiber and single mode single fiber.

When plugged into a computer’s USB port, the media converter shuts down automatically when you turn off the computer, which saves energy. Micro Mini Media Converters are excellent solutions for fiber-to-the-laptop applications where you need Gigabit fiber connectivity but local power isn’t available.

  Features:

  • Smallest media converters available; tuck the unobtrusively behind a PC
  • 10/100 /1000Base-T to 100/1000Base-X SFP
  • SFP port support 100Base-FX or 1000Base-X dual mode (auto detection)
  • USB-powered for portability, or use 5~15VDC
  • wide range power input
  • Ultra-compact and weigh less than 2 ounces
  • Support 9k jumbo frame
  • Options in single mode dual fiber, multi-mode dual fiber, and single mode in single fiber
  • Aluminum Case: Conducive to heat dissipation; Lower weight and lower freight cost

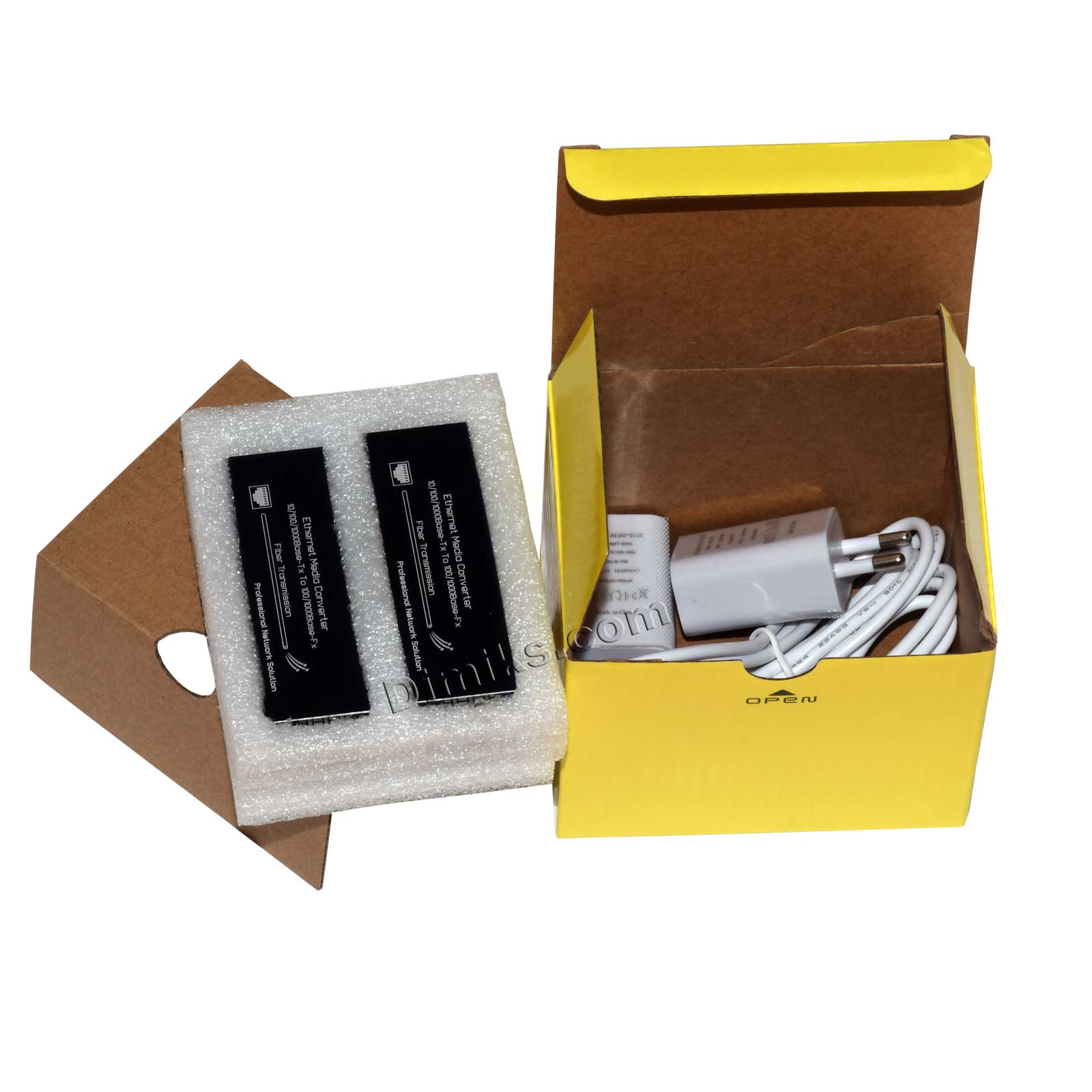

  • Including a Power Supply
