100G QSFP28, 100G CFP4, 100G CFP2, 100G CFP, 100G CXP, 100G CPAK
100G Modern and high-speed types of optical transceivers standard 100GBASE (100Gb/s).
QSFP28 100G (modules)
| Model QSFP28 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |

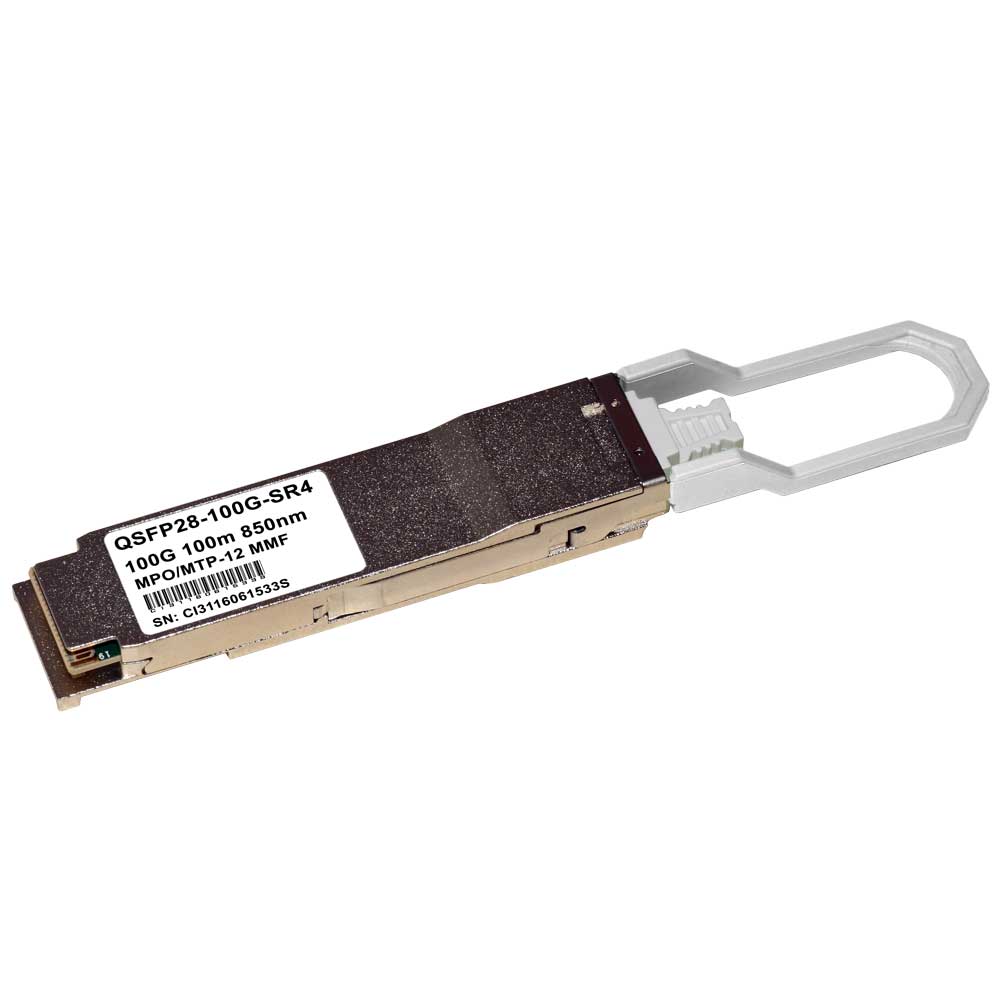

| QSFP28-100G-SR4 MTP/MPO-12 | 103.1 Gb/s | 100 m (328 ft) | 850 nm | VCSEL 850nm | MTP / MPO |
| QSFP28-100G-PSM4 MTP/MPO-12 | 103.1 Gb/s | 500 m (1640 ft) | 1310 nm | 4x DFB | MTP / MPO |
| QSFP28-100G-CWDM4 LC | 103.1 Gb/s | 2 km (1.2 mi) | 1310 nm | DML CWDM | LC duplex |

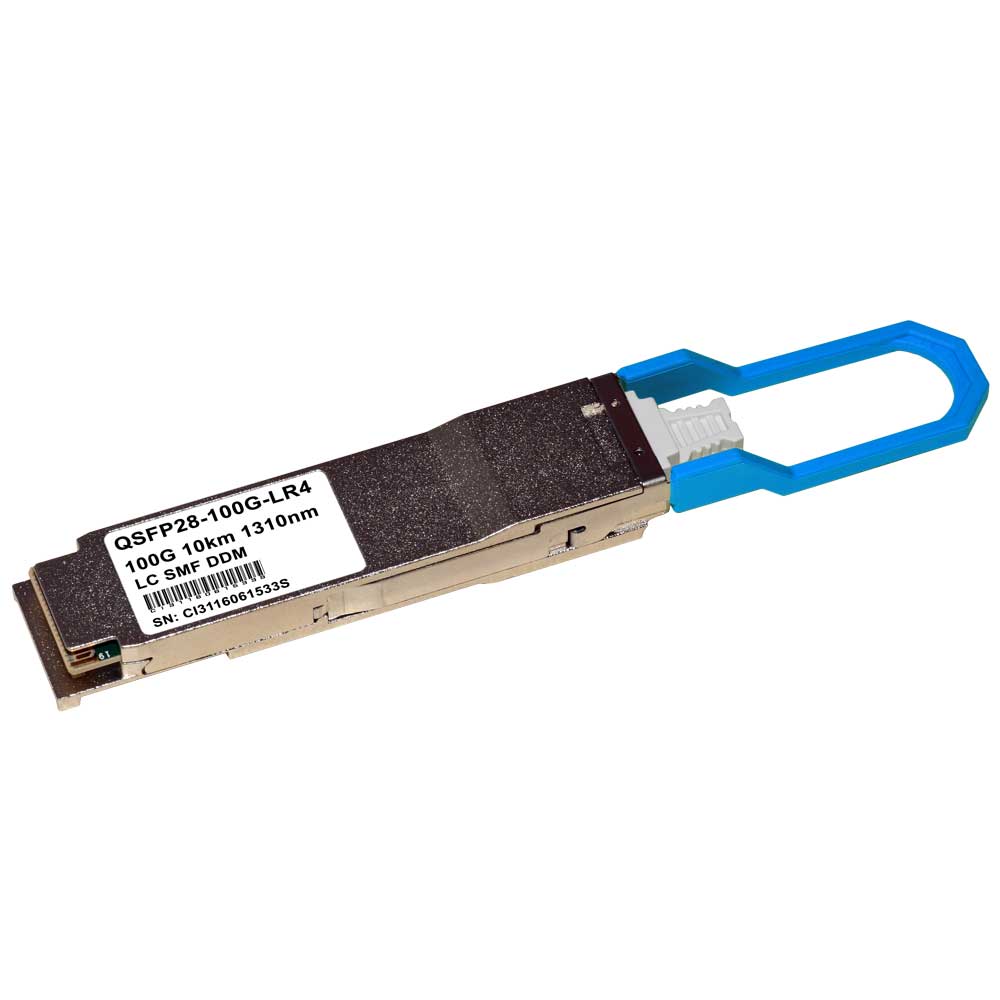

| QSFP28-100G-LR4 | 103.1 Gb/s | 10 km (6.2 mi) | 1310 nm | DML 1310nm | LC duplex |
| QSFP28-100G-ER4 | 103.1 Gb/s | 40 km (24.9 mi) | 1310 nm | 4x EML | LC duplex |
| QSFP28-100G-ZR4 80km | 103.1 Gb/s | 80km (49.7mi) | LC duplex | ||
| One fiber | |||||
| 100G QSFP28 BiDi 150m 850/900 | 103.1 Gb/s | 850/900 | LC simplex | ||

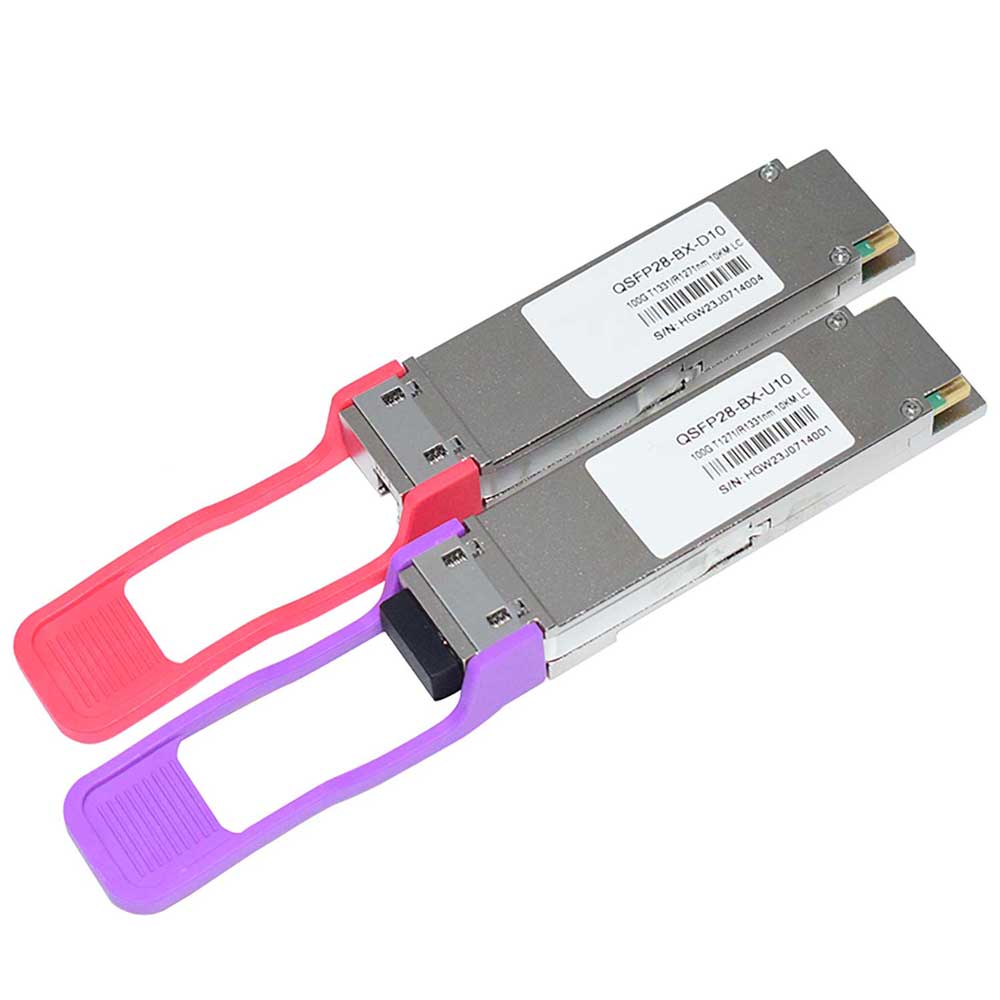

| 100G QSFP28 LR4 BiDi 10km 1271/1331 | 103.1 Gb/s | 10 km (6.2 mi) | 1271/1331 | LC simplex | |
| 100G QSFP28 LR4 BiDi 20km 1271/1331 | 103.1 Gb/s | 1271/1331 | LC simplex | ||
| 100G QSFP28 LR4 BiDi 40km 1304/1309 | 103.1 Gb/s | 40 km (24.9 mi) | 1304/1309 | LC simplex | |
| 100G QSFP28 LR4 BiDi 80km 1304/1309 | 103.1 Gb/s | 80km (49.7mi) | 1304/1309 | LC simplex |
CFP4 100G (modules)
| Model CFP4 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CFP4-100G-LR4 | 112 Gb/s | 10 km (6.2 mi) | 1310nm | 4x DFB | LC duplex |
CFP2 100G (modules)
| Model CFP2 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CFP2-100G-LR4 | 112 Gb/s | 10 km (6.2 mi) | 1310nm | 4x DFB | LC duplex |
CFP 100G (modules)
| Model CFP 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CFP-100G-SR10 MTP/MPO-24 | 103.1 Gb/s | 100 m (328 ft)/ 150 m (492 ft) |
850 nm | 4x VCSEL | MTP / MPO |
| CFP-100G-LR4 | 103.1 Gb/s | 10 km (6.2 mi) | 1310 nm | 4x DFB | LC duplex |
| CFP-100G-ER4 | 103.1 Gb/s | 40 km (24.9 mi) | 1310 nm | 4x DFB | LC duplex |
CXP 100G (modules)
| Model CXP 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| CXP-100G-SR10 MTP/MPO-24 | 120 Gb/s | 100 m (328 ft)/ 150 m (492 ft) |
850 nm | 12x VCSEL | MTP / MPO |
CPAK Cisco 100G (modules)
| Model CPAK Sico 100G transceiver module | Data rate | Distance | Wavelength | Optical Components |
Connector |
| Cisco CPAK-100G-SR10 | 103.1 Gb/s | 70 m / 100 m | 850 nm MMF (24 fibers) |
||
| Cisco CPAK-100G-SR4 | 103.1 Gb/s | 100 m (328 ft)/ 150 m (492 ft) |
850 nm MMF (12 fibers) |
||
| Cisco CPAK-100G-PSM4 | 103.1 Gb/s | 500 m | 1295 to 1325 SMF (12 fibers) |
||
| Cisco CPAK-100G-CWDM4 | 103.1 Gb/s | 2 km | 1271, 1291, 1311, 1331 SMF Duplex |
||
|
Cisco CPAK-100G-LR4 |
103.1 Gb/s | 10 km | 1310 nm SMF Duplex |
||
| Cisco CPAK-10X10G-LR | 103.1 Gb/s | 10 km | 1310 nm SMF (24 fibers) |
||
| Cisco CPAK-100G-ER4L | 103.1 Gb/s | 25 km | 1310 nm SMF Duplex |
||
| Cisco CPAK-10X10G-ERL | 103.1 Gb/s | 25 km | 1550 nm SMF (24 fibers) |
