Powerful industrial Thyristors, fast: type KK, YC, type KP, 5STP, Westcode and other types

DCR504ST1616, DCR604SE1616, DCR804SG1616, DCR1004SN1616, C712L, C448PB, R1275NS21, R2619ZC20

Direct deliveries from the largest industrial electronic component manufacturer in China.

Thyristors of KK, YC series (Powerful Fast Thyristors)

Thyristors of KK, YC series (Powerful Fast Thyristors)

Fast Switching Thyristor is a fast turn off semiconductor device,also called "Inverter Thyristor", "Fast Thyristor". Fast switching thyristor is a very importment component on furnace power supply.

Application: induction furnace, inverter, chopper, induction heating, various types of forced conversion, high power switching, powerful electric motor control.

KK series (Fast Thyristors)

Type	V_DRM/V_RRM	I_T(AV)	I_T(AV) I_TSM @ T_VJM&10ms	I_DRM/I_RRM(max) Tj=125℃	V_TM(max)@Tj=25℃		Tq(max)	T_vj	R_thjc	F±10%	Outline
	V_DRM/V_RRM	I_T(AV)	I_T(AV) I_TSM @ T_VJM&10ms	I_DRM/I_RRM(max) Tj=125℃	I_TM	V_TM	Tq(max)	T_vj	R_thjc	F±10%
	V	A	KA	mA	I_TM,A	V	μs	℃	K/W	KN
KK200	1200-2000	200	3.0	30	600	2.9	35	125	0.06	10	KT30
KK500	1200-2000	500	7.5	50	1500	2.9	40	125	0.04	15	KT40
KK1000	1200-2000	1000	14	60	3000	2.9	40	125	0.02	25	KT55

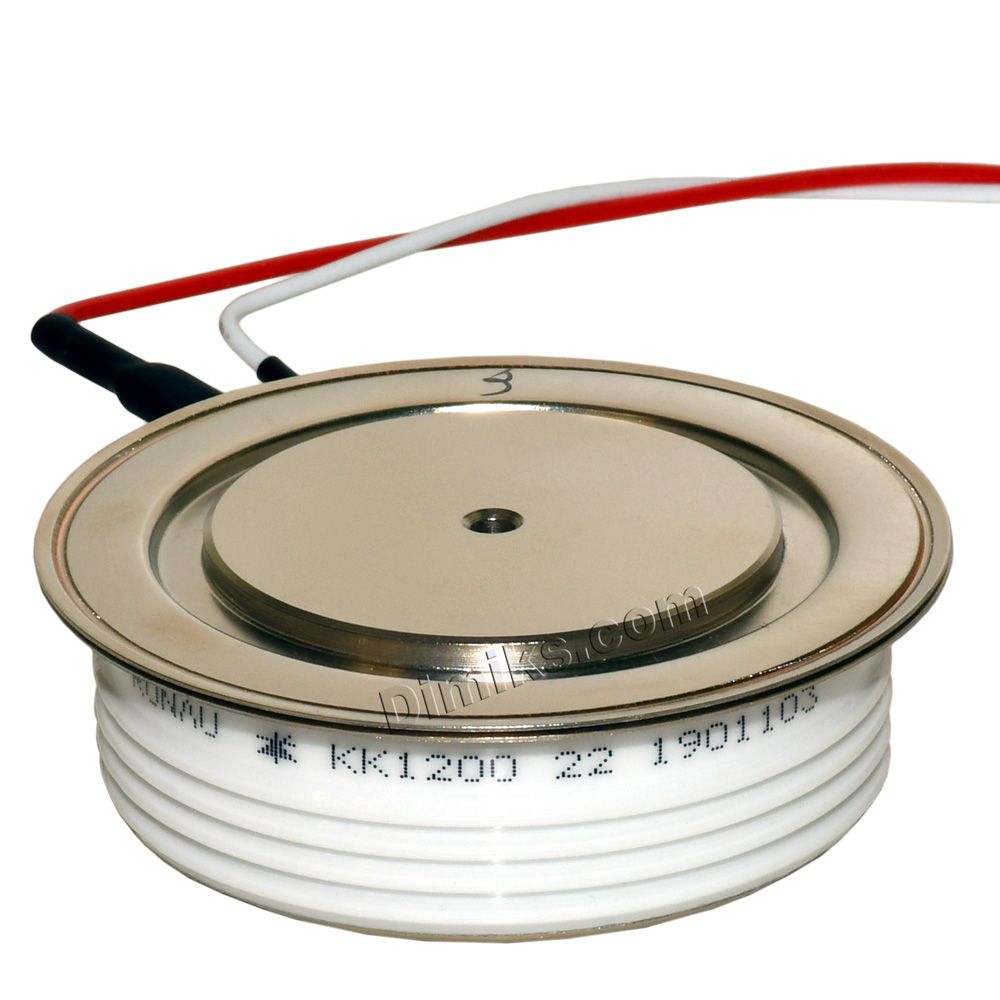

KK1200 KK1200/16 KK1200/18 KK1200/22	1200-2000	1200	14	60	3000	2.9	40	125	0.019	28	KT60

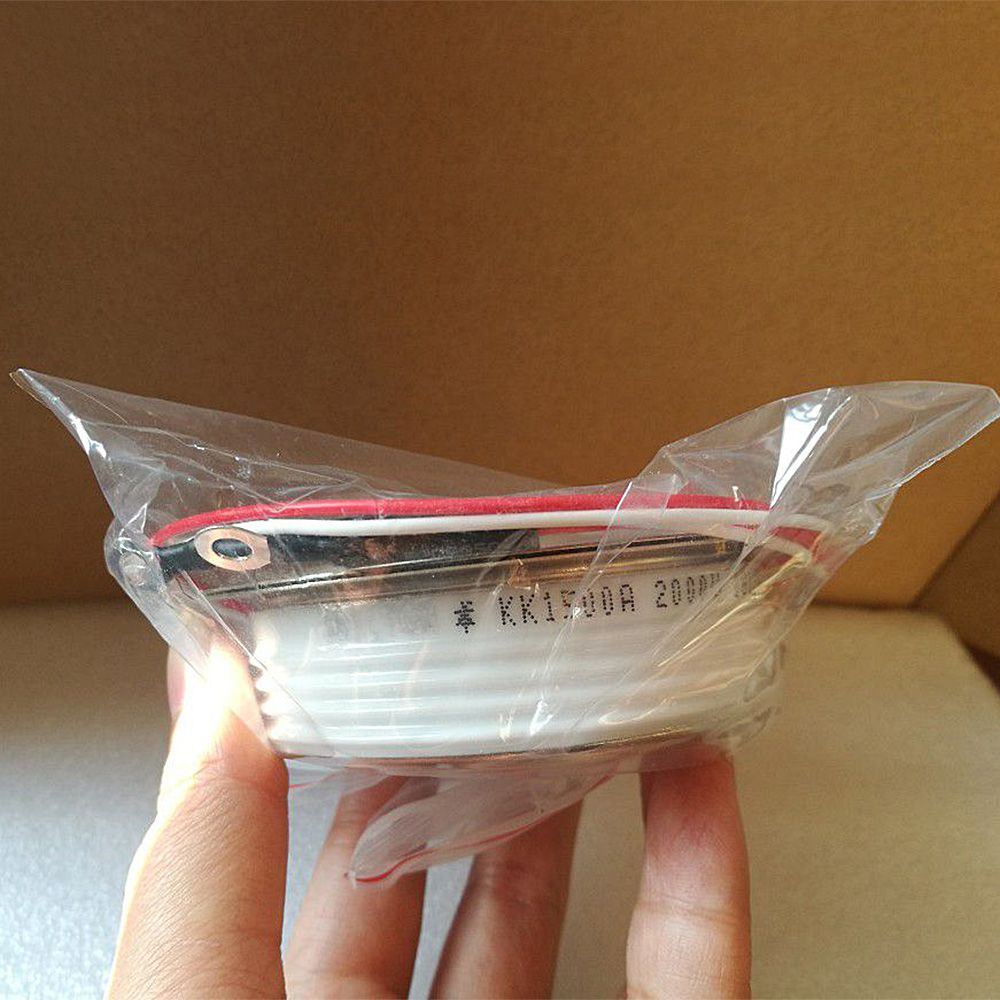

KK1500	2200-2500	1500	23	80	3000	3.0	60	125	0.018	30	KT70
KK1800 KK 1800A 1200V KK 1800A 1400V KK 1800A 1600V KK 1800A 1800V KK 1800A 2000V	1200-2000	1800	27	80	3000	2.6	50	125	0.018	30	KT70
KK2500	2200-3000	2500	38	100	3000	2.5	80	125	0.01	36	KT80
KK3000	1800-2500	3000	42	100	4000	2.9	80	125	0.008	36	KT90
KK4000	1800-2500	3000	56	100	5000	2.9	80	125	0.006	36	KT110

YC series (Fast Thyristors)

Type	I_T(AV)	V_DRM/V_RRM	I_T(AV) I_TSM @T_VJM&10ms	I_DRM/I_RRM(max) Tj=125℃	V_TM(max)		Tq(max)	T_vj	R_thjc	F±10%	Outline
	I_T(AV)	V_DRM/V_RRM	I_T(AV) I_TSM @T_VJM&10ms	I_DRM/I_RRM(max) Tj=125℃	I_TM	V_TM	Tq(max)	T_vj	R_thjc	F±10%
	A	V	KA	mA	A	V	μs	℃	K/W	KN
YC476	200	600-1400	5.5	35	1200	2.5	20	125	0.06	10	KT30
YC448	700	600-1400	9.1	35	2000	2.9	40	125	0.04	15	KT40
YC612	700	1600-2000	9.0	60	2000	2.21	60	125	0.04	15	KT40
YC613	500	1600-2000	6.5	60	2000	2.9	50	125	0.04	15	KT40
YC458	1200	600-1400	14.6	65	3000	2.35	40	125	0.02	25	KT55
YC712	1125	1600-2000	20	60	1000	1.45	55	125	0.02	25	KT55
YC714	925	2000	14.7	60	1000	1.95	45	125	0.02	25	KT55
YC770	2100	1800	35	100	2000	1.55	80	125	0.01	36	KT80

Thyristors KP, YC, 5STP series (Powerful General Purpose Thyristors)

Thyristors KP, YC, 5STP series (Powerful General Purpose Thyristors)

Application: high power switching, dc and ac motor control, locomotive, dc/ac switching, phase controlled rectification, active and passive inverter, high current, soft start, induction heating, induction furnace, HVDC, TSC, VAR, various types of forced conversion.

YC series (General Purpose Thyristors)

Type	I_T(AV)	V_DRM/V_RRM	I_TSM@ TVJM&10ms	I_DRM/I_RRM(max)Tj=125℃	V_TM(max)		T_vj	R_thjc	F±10%	Outline
	I_T(AV)	V_DRM/V_RRM	I_TSM@ TVJM&10ms	I_DRM/I_RRM(max)Tj=125℃	I_TM	V_TM	T_vj	R_thjc	F±10%
	A	V	KA	mA	A	V	℃	K/W	KN
YC380	250	400-1600	3.5	20	1500	2.8	125	0.11	5	KT26
YC430	680	400-1600	8.0	20	3000	2.4	125	0.06	10	KT30
YC431	450	1200-1800	5.9	30	3000	2.6	125	0.06	10	KT30
YC440	900	400-1600	12	35	3000	1.65	125	0.04	15	KT40
YC441	750	1400-2200	10	35	3000	2.0	125	0.04	15	KT40
YC450	1640	400-1600	26	45	3000	1.40	125	0.02	25	KT55
YC451	1500	1400-2200	20.8	45	3000	1.70	125	0.02	25	KT55
YC701	1250	1200-2100	16.6	65	3000	1.70	125	0.02	25	KT55
YC702	1000	2400-3200	20.5	150	2000	1.85	125	0.02	25	KT55
SDT122	950	3500-4400	14.7	75	1000	1.60	125	0.02	25	KT55
YC781	2500	1200-2100	41.5	150	2000	1.20	125	0.01	36	KT80
YC782	2300	2200-2600	32	150	2000	1.35	125	0.01	36	KT80
YC784	1650	3600-4500	24	200	2000	1.85	125	0.01	36	KT80
YC789	1200	5500-6500	20	200	2000	2.3	125	0.01	36	KT80

KP series (General Purpose Thyristors)

Type	V_DRM/V_RRM V	I_T(_AV) A	I_TSM@ T_VJM&10ms KA	V_TM(max)@ I_TM&TC=25℃ @/V		T_vj ℃	R_thjc K/W	F±10% KN	Outline
KP160	2500-3600	160	2.2	480	2.2	125	0.11	4	KT26
KP200	1200-2200	200	2.8	600	2.8	125	0.11	4	KT26
KP300	600-1000	300	4.0	900	4.0	125	0.11	4	KT26
KP160	3800-4400	160	2.5	480	2.5	125	0.06	10	KT30
KP200	3200-3600	200	3.0	600	3.0	125	0.06	10	KT30
KP300	1200-3000	300	4.8	900	4.8	125	0.06	10	KT30
KP400	600-1000	400	5.2	1200	1.7	125	0.06	10	KT30
KP300	3200-3600	300	5.0	900	2.6	125	0.05	13	KT33
KP400	1200-3000	400	5.6	1200	2.4	125	0.05	13	KT33
KP500	600-1000	500	6.5	1500	1.8	125	0.05	13	KT33
KP250	5200-6500	250	3.8	750	3.5	125	0.04	15	KT40
KP400	3200-4500	400	6.2	1200	2.9	125	0.04	15	KT40
KP500	1200-3000	500	8.0	1500	2.4	125	0.04	15	KT40
KP600	600-1000	600	9.3	1800	1.8	125	0.04	15	KT40
KP500	5200-6500	500	8.7	1500	2.7	125	0.02	25	KT55
KP800	3200-4500	800	11.2	2400	2.6	125	0.02	25	KT55
KP1000	1200-3000	1000	14	3000	2.3	125	0.02	25	KT55
KP1200	600-1000	1200	15.6	3000	1.8	125	0.02	25	KT55
KP1200	2400-4500	1200	15.6	3000	2.4	125	0.02	28	KT60
KP1500	1200-2200	1500	21	3000	1.8	125	0.02	28	KT60
KP1000	5200-6500	1000	14	3000	3.2	125	0.018	30	KT70
KP1250	3200-4500	1250	17.2	3000	2.6	125	0.018	30	KT70
KP1500	2200-3000	1500	21	3000	2.3	125	0.018	30	KT70
KP1800	1200-2000	1800	25	3000	1.8	125	0.018	30	KT70
KP1200	5200-6500	1200	18	3000	3.0	125	0.01	35	KT80
KP1650	3200-4500	1650	24	3000	2.5	125	0.01	35	KT80
KP2000	2200-3000	2000	30	3000	2.2	125	0.01	35	KT80
KP2500	600-2000	2500	36	3000	2.0	125	0.008	35	KT80
KP1800	5200-6500	1800	29	3000	2.8	125	0.008	60	KT95
KP2500	3200-4500	2500	35	3000	2.4	125	0.008	60	KT95
KP3000	2200-3000	3000	42	3000	1.9	125	0.008	60	KT95
KP3500	1000-2000	3500	48	3000	1.6	125	0.006	60	KT95
KP2500	5200-6500	2500	38	5000	2.0	125	0.006	80	KT110
KP3800	3200-4500	3800	45	5000	2.0	125	0.006	80	KT110
KP4200	2200-3000	4200	60	5000	1.6	125	0.006	80	KT110
KP5000	1000-2000	5000	78	5000	1.3	125	0.006	80	KT110

5STP series (General Purpose Thyristors)

Type	I_T(AV) A	V_DRM/V_RRM V	I_TSM@ T_VJM&10ms KA	Outline MM
Y5STP03D6500	380	6500	4.5	60/34
Y5STP04D5200	440	5200	5	60/34
Y5STP04D4200	480	4200	5	60/34
Y5STP08D2800	792	2800	10.6	60/34
Y5STP08F6500	830	6500	11.8	75/47
Y5STP12F4200	1150	4200	15	75/47
Y5STP16F2800	1550	2800	23.6	75/47
Y5STP12K6500	1200	6500	21.9	110/63
Y5STP24L2800	2400	2800	41	110/63

You can order us any industrial equipment of any manufacturer. We will arrange the delivery.

We take a small commission (but at least to maintain the warranty).
